How to Extract UniFi AP firmware

Make sure you have binwalk installed

sudo apt install binwalk

Download the firmware from Ubiquiti’s website

https://ui.com/download/software/uap-ac-lite

We’ll need to extract the images a couple of times

binwalk -e 6.5.54.bin
cd ./_6.5.54.bin.extracted
binwalk -e 50FEE
cd _50FEE.extracted/
binwalk -e 3C7CC4

The last binwalk will extract the actual file system.

cd _3C7CC4.extracted/cpio-root

Ubiquiti AirGateway Pro Firmware Download Link

Ubiquiti changed up their download pages and it appears that there is not a page to download the AirGateway Pro firmware.

The normal AirGateway and AirGateway LR use the same firmware. The Pro can use either 2.4 or 5Ghz frequencies and has a different firmware download.

When we search for AirGateway, we only find results for the regular and LR.

There is also no download link on either AirGateway page for the Pro.

https://ui.com/download/software/airgateway

Fortunately, we can copy the download link, and change the firmware name to download the Pro version. All we need to do is change “AirGW” to “AirGWP”

Here is the direct link.

https://dl.ubnt.com/firmwares/airgateway/v1.1.12/AirGWP.v1.1.12.1028.190918.0702.bin

Using ADB to Pull APKs off Device

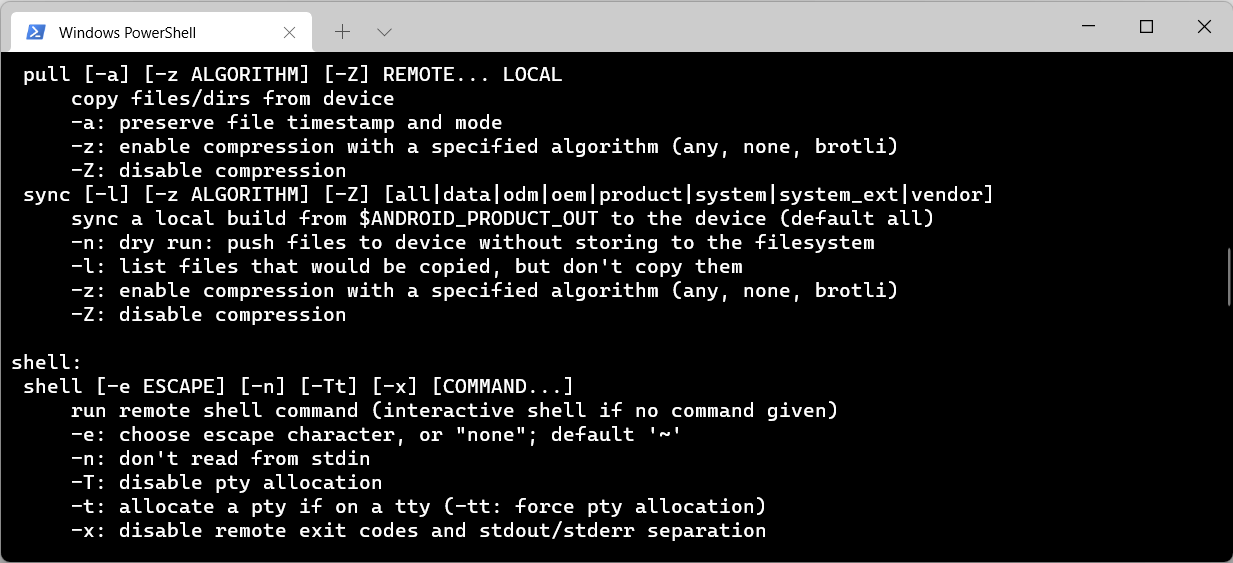

ADB Help for pull and shell

It is sometimes helpful to pull an APK from a working device so you can install it on a different device. These commands should work on an emulator, phone, tablet, or other Android device. You just need to be able to connect with ABD.

  • Connect to device with ADB
  • View installed apps
  • Find path for APK
  • Pull/Download APK

View Installed Apps

This will display a list of all the installed packages.

adb shell pm list packages

Find path for specific App/APK

Replace com.android.apk with the app of interest.

adb shell pm path com.android.apk

Pull APK to local machine

Pull/Download the APK of interest to your local machine with the following command. Change the path “/data/app/…” to the path returned from the previous command.

adb shell pull /data/app/info/base.apk

You can view the following link for more information.

https://stackoverflow.com/questions/4032960/how-do-i-get-an-apk-file-from-an-android-device

Advanced Tricks

What if you need to get an APK off a secondary profile, or would like to download all the APKs off a system? And what about split APKs?

Multiple User Profiles

Run the following command to list the users.

adb shell pm list users

Example return

Users:
        UserInfo{0:User:a41} running
        UserInfo{11:User:439} running

In this case our second user id is 11. To get a list of APKs installed for our second user we would specify the –user= option

adb shell pm list packages --user=11

To get the path for the app we would run it with

adb shell pm path --user=11 com.android.apk

Split APKs

Split APKs can be slightly more difficult to manage, mainly due to the fact that there are multiple APKs to keep track of.

When you run the “pm path” command, it should return multiple APKs. Use the pull command like normal, but download each APK.

You’ll need to use a split APK installer to install all the APKs.

PowerShell script for Pulling/Downloading all APKs on Device

The following PowerShell script will download all APKs for a specific user and put them in their own folders.

  • Copy the contents to a .ps1 file
  • Enable ps1 execution policy if not already enabled
  • Run PowerShell script.

This script will pull all the APKs off of a device and put them in the current folder.
It will also download split APKs.

# adbapkbackup uses adb to get a list of all the APKs you have on a phone and then
# Creates folders for each app and downloads the APKs for those apps.

# Copy and save code as a ps1 file

# Enable ps1 scripts to run on your computer by launching an Admin promopt and running
# set-executionpolicy remotesigned

# If you are in a secondary profile, add and/or modify
#  "--user 15"
# to your user id
# adb shell pm list users

# If in secondary profile, add "--user 15" after packages before > apklist.txt
adb shell pm list packages --user 15 > apklist.txt

 $apks = ((Get-Content .\apklist.txt)) -replace 'package:',''

 ForEach ($apk in $apks) {
    echo "APK is $apk"
    md $apk
    # If in secondary profile, add "--user 15" after path, before $file
    adb shell pm path $apk
    $filepath = ((adb shell pm path --user 15 $apk | % {$_.replace("package:","")}))
    ForEach ($lapk in $filepath | % {$_.replace("package:","")}) {
        echo "pulling $lapk $apk"
        adb pull $lapk $apk
    }
 }

Using wget to download HTML website

https://apple.stackexchange.com/questions/100570/getting-all-files-from-a-web-page-using-curl

Replace example.com/website with the website you want to download files from.

wget -r -np -k http://example.com/website/

The above command will download all the files it can find in that web directory, i.e. (html files) This can be helpful if your trying to move a simple HTML site.

The -r option means recursive, the -k option converts the links to local links after it downloads the page.

wget multiple links with random access times

Create a file “list.txt” that contains all the URLs you want to download and launch the following command

for i in cat list.txt ; do wget ${i} && sleep $(( ( RANDOM % 120 ) +1 )) ; done

It’ll now run and after each link will wait a random amount of time up to 120 seconds before downloading the next link. Change the number as needed.

Download file from the web using curl

The following command basically does the same thing as wget.  This can come in handy since OS X and some linux distros do not ship with wget by default.

curl -O -L www.incredigeek.com/home/downloads/wget/wget-1.14.tar.gz

The two options do the following

-O, –remote-name Write output to a file named as the remote file
-L, –location Follow redirects (H)
